Magnetic Lumber Scale

$18.95

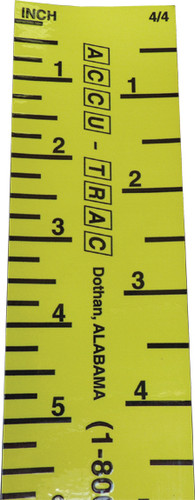

Measure the height of each cut with an adhesive log scale.  Simply attaches to your sawmill frame.  Made of tough vinyl material with a strong magnetic back.  Yellow background with black lettering.  Each scale has a total of two measurement systems; one on the left and one on the right.

These will work for logs up to 36"

There are four different scale types you can choose from:

  • 1" & 4/4 Scale - one side has a true scale measurement broken into 1/4" increments, next to that is a 4/4 scale where each line takes into account the blade thickness, so the 1" mark actually measures 1-3/16" and once you make your cut you are left with roughly a 1-1/8" board.
  • 5/4 & 6/4 Scale - the 1" mark on the 5/4 scale will measure 1-1/2" and on the 6/4 scale the 1" mark will measure 1-3/4"
  • 1" & 2" Scale - the 1" mark on 1" scale measures 1-1/16" and the 1" mark on the 2" scale measures 2-1/16"
  • Cross Tie Scale - it is marked to make either a 6", 7", 8", or 9" cross tie cut.  Numbers start at the top

Additional Notes:

  • Numbers that starting at the top and increasing as they go down

Choose the type of scale you would like.
