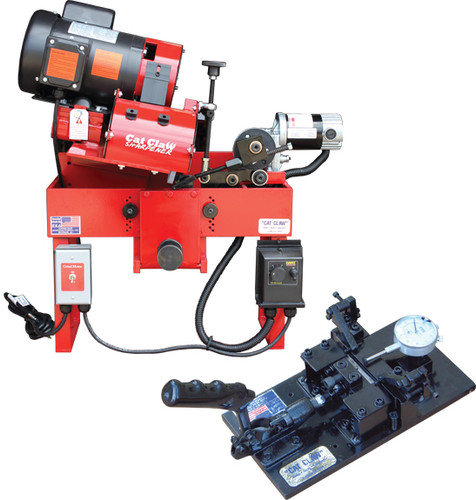

The Cat Claw Setter can set blades from 3/4” to 2” wide. Table mount push lever allows 850psi of pressure with the simple push of a handle. Blade deflection is pressed out as the sliding steel block moves forward. The spring loaded bar makes contact 1/8” ahead of the set pin, thus removing deflection and making it possible to get a true dial reading of the side clearance. The Cat Claw Setter gives accurate measurement of tooth set before and after setting on every tooth. It is built with a solid design. Unlike cheap imitations we use 1/2” plate steel for the base and computer machined parts of the highest accuracy.
Very simple to operate and extremely accurate!
Heavy built with 1/2" steel base frame
CNC machined parts for high precision accuracy
Very easy to operate with the simple tooth clicker manual advance
Accurate to within .001" of an inch
When ordering please let us know the blade type you will be setting in the text box below so we can have both machines pre-set for you. For Example: Cooks Super Sharp Duratooth 1-1/4 x .042 x 7/8
